The Cluster synopsis section (Example 5-2) shows clusters that were created for and used by the Linker, the order in which they were processed, and Global Section Match (GSMATCH) criteria.

Example 5-2 Cluster Synopsis

+------------------+ ! Cluster Synopsis !(1) +------------------+ (2) (3) Cluster Match Majorid Minorid ------- ----- ------- ---------- MYCLU DEFAULT_CLUSTER DECC$SHR LESS/EQUAL 1 1 SYS$PUBLIC_VECTORS EQUAL 9525 361572293

The items in the following list correspond to the numbered items in the preceding figure:

1. Cluster Synopsis. For I64 systems, there are separate map sections titled Cluster Synopsis and Image Segment Synopsis. The Cluster Synopsis section on I64 does not contain segment information.
2. Cluster. The Cluster column shows the names of the clusters created for and used by the linker, and the order in which they were processed. STARLET.OLB is an exception. It is on the default cluster but its processing is postponed after processing IMAGELIB.OLB. See Chapter 2 for more information on processing default libraries.
3. Match, Majorid, and Minorid. The Match, Majorid, and Minorid columns show the GSMATCH criteria along with the major and minor version numbers, if this information is available. For more information, see the GSMATCH= option in Part 4.

5.2.3 Image Segment Synopsis

This section of the image map includes other information about the image segments, formatted in columns. To compare with the Alpha Image Section Synopsis map, see Section 9.2.3.

Example 5-3 Image Segment Synopsis

+------------------------+ ! Image Segment Synopsis !(1) +------------------------+ (2) (3) (4) (5) (6) (7) (8) (9) (10) Seg# Cluster Type Pglts Base Addr Disk VBN PFC Protection Attributes ---- ------- ---- ----- --------- -------- --- ---------- ---------- 0 MYCLU LOAD 1 00010000 2 0 READ WRITE 1 LOAD 1 00020000 0 0 READ WRITE DEMAND ZERO 2 LOAD 1 00030000 3 0 READ ONLY EXECUTABLE,SHARED 3 LOAD 1 00040000 4 0 READ ONLY SHARED 4 LOAD 1 00050000 5 0 READ ONLY [UNWIND] 5 DEFAULT_CLUSTER LOAD 1 00060000 6 0 READ ONLY SHORT(11) 6 DYNAMIC 2 Q-00000000 80000000 7 0 READ ONLY Key for special characters above +----------------------+ ! Q - Quad Value ! +----------------------+

The items in the following list correspond to the numbered items in the preceding figure:

1. The Image Segment Synopsis section shows each segment as it was created.
2. Seg#. The image's segment number, indicating segments in the order the linker created them and used in image relocations and image fixups that are applied to a segment by the image activator.
   Using the ANALYZE/IMAGE/SEGMENT=DYNAMIC command, you can format the dynamic segment, which includes the image relocations and fixups. The following extract of the ANALYZE shows how the segment numbers are used for image relocations:

   Segment Offset Modified: 0000000000000050 imr$q_rela_offset Image Relocation Type: 00000081 imr$l_type Segment Being Modified: 00000003 imr$l_rela_seg Image Relocation Addend: 0000000000000000 imr$q_addend Symbol Segment Offset: 0000000000000000 imr$q_sym_offset Symbol Segment Number: 00000000 imr$l_sym_seg Virtual Address Affected: 0000000000040050

3. Cluster. The name of each cluster the linker created, listed in the order in which the linker created them. For better readability, the cluster name is only shown for the first segment in the cluster.
4. Type. The type of the segment, indicating if a segment will be in memory at run time (LOAD), or if the segment is used to activate the image (DYNAMIC).
5. Pagelets. The length of each segment, expressed in pagelets (512-byte quantities).
6. Base Address. The base address assigned to the segment. Note that all segments are relocatable, the image activator may relocate the base address.
7. Disk VBN (virtual block number). The virtual block number of the image file on disk where the segment begins. The number 0 indicates that the segment is not in the image file. This is the case for demand-zero segments.
8. Page fault cluster (PFC). The number of pagelets read into memory by the operating system when the initial page fault occurs for that segment. The number 0 indicates that the system parameter PFCDEFAULT determines this value, rather than the linker.
9. Protection. The protection attributes of the segment:


   Keyword	Meaning
   READ ONLY	Indicates that the segment is protected against write access.
   READ WRITE	Indicates that the segment allows both read and write access.

10. Attributes. A keyword phrase that characterizes the settings of certain attributes of the image segment, such as the attributes that affect paging.
    The following table lists the keywords used by the linker to indicate these characteristics of an image segment:


    Keyword	Meaning
    DEMAND ZERO	Indicates that the segment is a demand-zero segment. (For more information, see Section 3.4.4.)
    DZRO COMPRESSED	Indicates that a segment had the trailing pagelets containing zeros compressed. (For more information, see Section 3.4.4.)
    EXECUTABLE	Indicates that the segment contains code.
    PROTECTED	Indicates that a segment at run time will be protected from user-mode and supervisor-mode write access. The image activator ensures the protection when the segment is in memory. (For more information, see Section 4.4)
    SHARED	Indicates that a segment can be shared between several processes.
    SHORT	Indicates a short data segment, data which is addressed with small offsets from the global pointer. (For more information, see Section 3.4.3.2)
    VECTOR	Indicates that a segment contains privileged change-mode vectors or message vectors.
    [UNWIND]	Indicates that a segment contains unwind information. Please note that UNWIND is not an attribute. The linker flags this segment for better readability because all other attributes may be identical to other segments. (For more information, see Section 3.2.1.5)


    The linker may use more than one keyword to describe a segment. For example, to describe a segment that contains code, the linker uses the READ ONLY and EXECUTABLE keywords.
11. If the module was compiled with /TIE and the image is linked /NONATIVE_ONLY and if the image contains nonstandard signatures, a separate segment appears immediately after the short data segment that contains them.

5.2.4 Program Section Synopsis Section

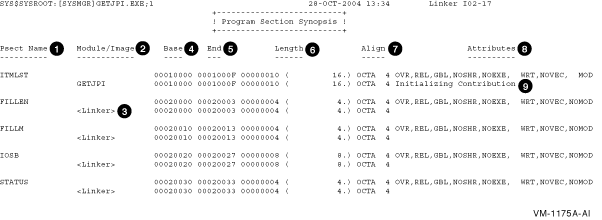

Figure 5-1 Program Section Synopsis

The items in the following list correspond to the numbered items in the preceding figure. There are two types of line entries: first type is a section entry (Psect Name); the second type are individual module contributions to that section (Module/Image).

1. Psect Name. The name of each section in the image in ascending order of its base virtual address.
2. Module/Image. The names of the modules that contribute to the section whose name appears on the line directly above in the Psect Name column. If a shareable image appears in this column, the section is overlaid onto the section in the shareable image.
3. Base. The starting virtual address of the section or of a module that contributes to a section. If the section is overlaid onto a section in a shareable image, the virtual address is taken from the shareable image.
4. End. The ending virtual address of the section or of a module that contributes to a section. If the section is overlaid onto a section in a shareable image, the virtual address is taken from the shareable image.
5. Length. For the section entry line, the total length of the section in bytes; for the individual module contribution lines, the length of the individual contribution in bytes.
6. Align. The type of alignment used for the entire section or for an individual section contribution. The alignment is expressed in two ways. In the first column, the alignment is expressed using a predefined keyword, such as OCTA. In the second column, the alignment is expressed as an integer that is the power of 2 that creates the alignment. For example, octaword alignment would be expressed as the keyword OCTA and as the integer 4 (because 2⁴ = 16). For more information on the effects of alignment with the PSECT= option see Part 4.
   If the linker does not support a keyword to express an alignment, it puts the text "2 **" in the column in which the keyword usually appears. When read with the integer in the second column, it expresses these alignments, such as 2⁵ = 32.
7. Attributes. The attributes associated with the section. For a complete list of all the possible attributes, see Chapter 3.
8. The linker indicates which modules made initializations (if there were any) to sections which have the attributes OVR, REL and GBL with the designation Initializing Contribution.
   If you get multiple initialization errors, the linker will have two or more sections marked with the designation Initializing Contribution, in order to help you debug an instance that has many contributors.
9. The linker contributes storage for common or relaxed ref/def symbols. It is marked with <Linker> under the Module/Image header. The section name is always named after the symbol. (In this example map the C module was compiled with the default switch /EXTERN=RELAXED, and the variables ITMLST, FILLEN, FILLIM and IOSB are relaxed ref/def symbols).
10. The linker makes a contribution to the code section containing trampolines (instructions with larger branches within the same code segment) or code to branch to another segment (either inside or outside the image). It is marked with <Linker> under the Module/Image header.

5.2.5 Symbol Cross-Reference Section

Example 5-4 Symbol Cross-Reference

+------------------------+ ! Symbol Cross Reference ! +------------------------+ (1) (2) (3) (4) Symbol Value Defined By Referenced By ... ------ ----- ---------- ----------------- DECC$TXPRINTF 00000496-X(5) DECC$SHR GETJPI ELF$TFRADR 00060050-R WK-GETJPI FILLEN 00020000-R GETJPI GETJPI FILLM 00020010-R GETJPI GETJPI GETJPI (U) 00000000 <Linker Option> INTERNAL_GETJPI 00060098-R GETJPI IOSB 00020020-R GETJPI GETJPI ITMLST 00010000-R GETJPI STATUS 00020030-R GETJPI GETJPI SYS$GETJPIW 0000009A-X SYS$PUBLIC_VECTORS GETJPI

The items in the following list correspond to the numbered items in the preceding figure:

1. Symbol. The name of the global symbol.
2. Value. The value of the global symbol, expressed in hexadecimal. The linker appends characters to the end of the symbol value to describe other characteristics of the symbol. For an explanation of these symbols, see Section 5.2.6.
3. For I64 systems, the designation of an external symbol is always X (external). The linker can not know whether or not an external symbol is relocatable or not. As a result, the designation R (relocatable) can not be attached.
4. Defined By. The name of the module in which the symbol is defined. For example, the symbol ITMLST is defined in the module named GETJPI.
5. Referenced By... . The name or names of all the modules that contain at least one reference to the symbol.

5.2.6 Symbols By Value Section

Example 5-5 Symbols by Value

+------------------+ ! Symbols By Value ! +------------------+ (1) (2) Value Symbols... ----- ---------- 00000000 GETJPI (U) 0000009A X-SYS$GETJPIW 00000496 X-DECC$TXPRINTF 00010000 R-ITMLST 00020000 R-FILLEN 00020010 R-FILLM 00020020 R-IOSB 00020030 R-STATUS 00060050 R-ELF$TFRADR 00060098 R-INTERNAL_GETJPI Key for special characters above(3) +----------------------+ ! * - Undefined ! ! (U) - Universal ! ! R - Relocatable ! ! X - External ! ! C - Code Address ! ! WK - Weak ! ! UxWk - Unix-Weak ! +----------------------+

The items in the following list correspond to the numbered items in the preceding figure:

1. Value. The value of each global symbol, expressed in hexadecimal, in ascending numerical order.
2. Symbols... . The names of the global symbols. If more than one symbol has the same value, the linker lists them on more than one line. The characters prefixed to the symbol names indicate other characteristics of the symbol, such as its scope.
3. Keys for Special Characters. The keys for special characters used in the Symbols column are defined as follows:
   • On I64, the special character C appears for code address. When a function does not have a function descriptor assigned by the linker, its value is its code address.
   • For I64 systems, universal symbols appear once with a suffix of (U) defined by <Linker Option> to indicate the external value, and again, possibly with the prefix or suffix R , that indicates their internal value. The external value is the index into the symbol vector. If you had a symbol vector with an alias name, the alias name appears with the universal value, and the internal name appears with the internal value.
     For example, symbol_vector=(getjpi/internal_getjpi=procedure) yields:

     00000000 GETJPI (U) 00050098 R-INTERNAL_GETJPI


     Note that the OpenVMS Alpha prefixes and suffixes A and I (for Alias and Internal) are not used by I64.

   • WK designates a weak symbol.
   • UxWk designates a UNIX-style weak symbol, which is similar to an OpenVMS weak symbol. However, more than one symbol with a UNIX-style weak definition can be processed when linking multiple modules without producing a multiple definitions error. UNIX-style weak symbols are currently produced by the C++ compiler. (For more information about symbol types, see Chapter 2.)

5.2.7 Image Synopsis Section

Example 5-6 Image Synopsis

+----------------+ ! Image Synopsis ! +----------------+ Virtual memory allocated:(1) 00010000 0006FFFF 00060000 (393216. bytes, 768. pages) 64-Bit Virtual memory allocated:(2) 00000000 00000000 00000000 80000000 80010000 00010000 (65536. bytes, 128. pages) Stack size:(3) 0. pages Image header virtual block limits:(4) 1. 1. ( 1. block) Image binary virtual block limits:(5) 2. 8. ( 7. blocks) Image name and identification: GETJPI V1.0 Number of files: 5. Number of modules: 3. Number of program sections: 8. Number of global symbols: 3364. Number of cross references: 17. Number of image segments: 7. Transfer address from module: GETJPI User transfer FD address:(6) 00000000 00060050 User transfer code address:(7) 00000000 00030000 Initial FP mode: 00000000 09800000 (IEEE DENORM_RESULTS) Number of code references to shareable images: 2. Image type: SHAREABLE. Global Section Match=EQUAL, Ident, Major=9533, Minor=3817251083 Reduced Floating Point model (RFP): Image does not use RFP model Map format: FULL WITH CROSS REFERENCE in file DISK$USER:[JOE]GETJPI.MAP;1 Estimated map length: 443. blocks

The following item corresponds to the numbered item in Example 5-6:

1. Virtual memory allocated. This line contains the following information:
   • The starting address of the image (base address)
   • The ending address of the image
   • The total size of the image, expressed in bytes, in hexadecimal radix

   The numbers in parentheses at the end of the line indicate the total size of the image, expressed in bytes and in pagelets. Both these values are expressed in decimal.
2. 64-Bit Virtual memory allocated. The next two lines contain information on the image portions in P2 space. The virtual addresses are printed by column, in two rows, with the high order digits in the first row. The values are as in the prceeding line: the starting-address, the ending-address, the size.
   Sections with the attribute ALLOC_64BIT are collected into P2 space (For more information on collecting sections and assigning virtual addresses see Chapter 3.) The linker usually places the image activator information (dynamic segment) into the 64-bit space. Therefore, for all I64 images, there usually is 64-bit virtual memory allocated.
3. Stack size.
4. Image header virtual block limits. For I64 images, the header blocks contain the ELF header and the segment header table. This is usually one disk block.
5. Image binary virtual block limits. For I64 images, the binary blocks contain the image binaries (the segments) and other sections, depending on the type of image. There can be traceback and debug information as well as symbol tables. Also, the section header table describing such sections is counted here.
6. User transfer FD address. The virtual address of the function decriptor (FD) for the main entry. This is an address in the short data segment.
7. User transfer code address. The virtual address of the first code instruction in the main entry. This is an address in an executable segment.
